제품 상세 정보:
|
| 선적의 무게: | 1.5 톤 | 기계 모델: | PT-1300/1650 |
|---|---|---|---|
| 수출 패키지: | 철분 홀더가있는 진공 백 | 기계 시험 보고서: | 고객의 요구로 |
| 장비 전력: | 22kW, 380V, 3 상 | 민 원료 크기: | 50*60cm 이상 |
| 비디오 지원: | 공급할 수 있습니다 | 맥스 팔레트 사이즈: | 130*80cm |
| 강조하다: | dust removal pile turner machine,air alignment pile turner machine,printing industry pile turner machine |
||

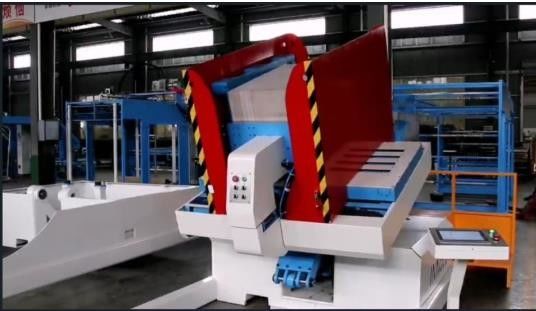

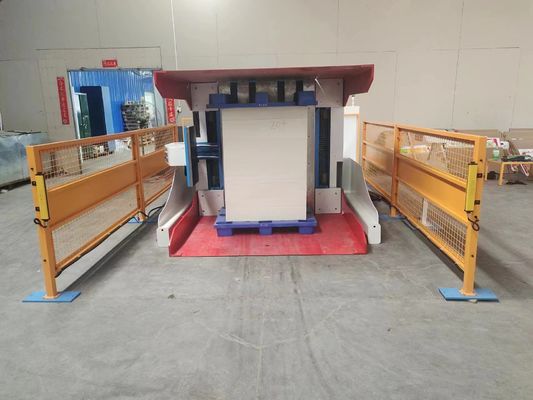

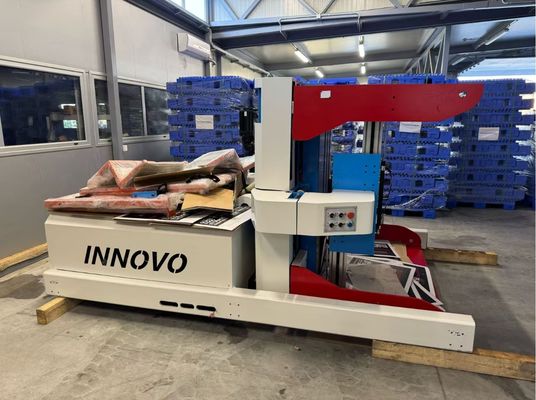

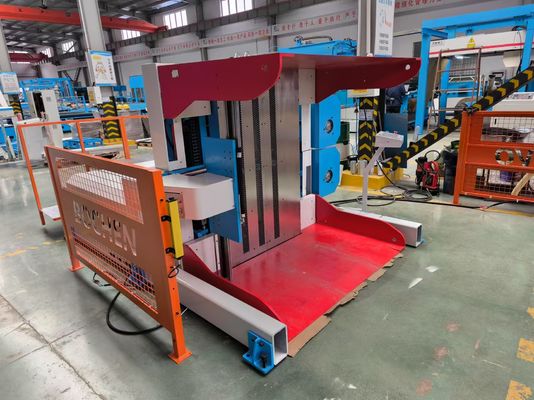

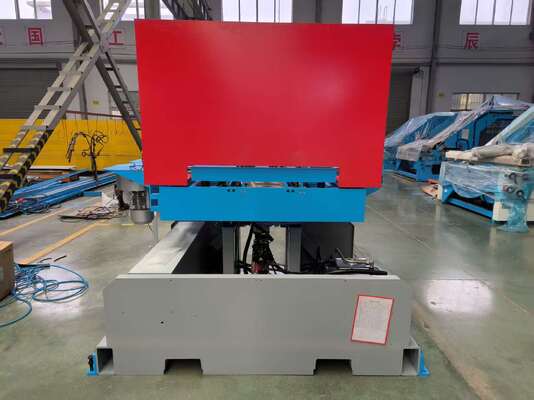

This pile turner machine is designed for dust removal and air alignment in the printing and packaging industry, significantly improving work efficiency and print quality.
The Pile Turner performs multiple functions including turning, airing, aligning, jogging, dust removal, drying, conditioning, ionizing, pallet changing, centering, and sheet pulling. It is essential equipment for enhancing productivity and print quality in industrial printing operations.
| Model | 1300 | 1450 | 1650 | 1900 |
|---|---|---|---|---|
| Max sheet size | 800×1300mm | 1100×1450mm | 1200×1700mm | 1400×1850mm |
| Min sheet size | 500×600mm | 500×600mm | 500×600mm | 500×600mm |
| Loading weight | 1000kg | 1400kg | 2500kg | 3000kg |
| Platform width | 1300mm | 1450mm | 1700mm | 1850mm |
| Max pile height | 1600mm | 1600mm | 1600mm | 1600mm |
| Min pile height | 800mm | 850mm | 850mm | 900mm |
| Power | 380V, 10KW | 380V, 12KW | 380V, 14KW | 380V, 22KW |
| Dimension | 10600×2400×2750mm | 11400×2600×2950mm | 13000×2700×2950mm | 13800×2900×2950mm |
| Machine weight | 3500kg | 4800kg | 6500kg | 8000kg |
