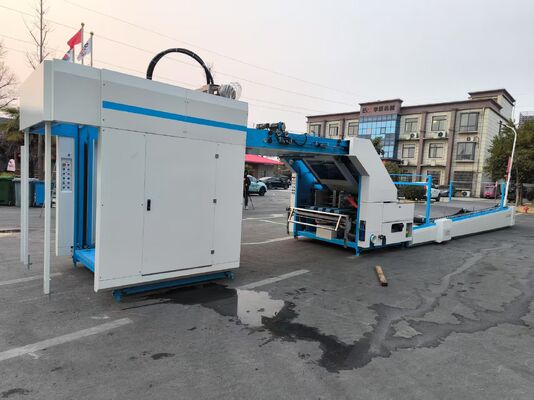

High Speed 10 Servos Flute Laminator Machine Flute Laminating Machine For Corrugated Cardboard Box Industry

큰 이미지 : High Speed 10 Servos Flute Laminator Machine Flute Laminating Machine For Corrugated Cardboard Box Industry

제품 상세 정보:

원래 장소:	안후이
브랜드 이름:	Innovo Bochen
인증:	CE
모델 번호:	GFS-1500/1700

결제 및 배송 조건:

최소 주문 수량:	1세트
가격:	60000-78000USD
포장 세부 사항:	진공백
배달 시간:	30-45일
공급 능력:	달 당 30 세트

접촉

High Speed 10 Servos Flute Laminator Machine Flute Laminating Machine For Corrugated Cardboard Box Industry

설명

지불:	T/T 또는 L/C	기계의 정미중량:	9800KG
라미네이션 유형:	종이로 골판지 또는 골판지에서 골판지로	최대 라인 시속:	215m/min 또는 20000pcs/시간
보증 기간:	2년 또는 24개월	최대 시트 크기:	15001500mm 및 17001700mm
전원공급장치:	380V/50Hz 3 상	표면 페이퍼 두께:	100-800GSM 인쇄 용지 또는 판지
마에케팅은 타이핑합니다:	완전히 지적입니다	힘:	33kW
애플리케이션:	골판지와 판지를 라미네이트합니다

High Speed 10 Servos Flute Laminator Machine Featuring No Feeding Pressure Structure and Digital Glue Control for Precise and Lamination

Reduced Glue Consumption in Corrugated Lamination

Performance Characteristics

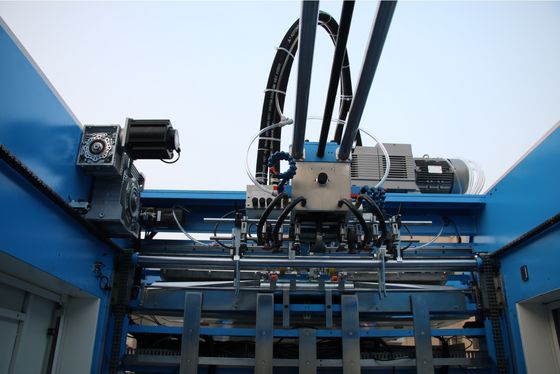

Lead edge feeding system: No feeding pressure structure, prevents damage to corrugated material while enhancing pressure resistance.
Top sheet aligner system: Ensures high accuracy with optional overlap or separation sheet feeding modes.
Digital glue volume control: Automatic adjustment of glue volume and gluing roller gap based on bottom sheet thickness.
Large stainless steel anilox roller (160mm diameter): Provides stable, high-efficiency operation with even coating and glue savings.
Automatic paper detection: Servo correction technology ensures top paper accurately tracks bottom paper.
Dual-use lifting platform: Accommodates both pre-stacker paper feeding and direct stack feeding.
Multifunctional rack: Designed for curved corrugated materials.
Circulating glue system: Reduces glue loss and maintains stable adhesion.
One-click adjustment: Whole machine setup with simple paper size input.
Order memory function: Quick recall of previous settings for efficient operation.
Video monitoring: Optional system for operational oversight.

Technical Specifications

Model	GFH-1500	GFH-1700	GFH-1900	GFH-2200
Max size	1500×15000mm	1700×1700mm	1900×1900mm	2200×2100mm
Min size	380*400mm	400×400mm	450×450mm	500×500mm
Top Paper	120-800g	120-800g	120-800g	120-800g
Bottom paper	300gsm-10mm Corrugated board and cardboard
Max speed	200m/min	200m/min	200m/min	200m/min
Power	28kw	30kw	33KW	35KW
Stick accuracy	±1.0mm	±1.0mm	±1.0mm	±1.0mm

Structural Features

Advanced transmission control system with automatic paper size adjustment
Computerized high-speed fitting capability (up to 18,000 pieces/hour)
Chuanliu-type air supply head with multiple nozzle configurations
Feida Block system for efficient cardboard handling with optional track-assisted pre-stacker
Multiple electric eye sensors for precise paper alignment
Full-function electronic control system with human-machine interface and PLC monitoring
Automatic glue replenishment system with recycling capability

System Components

Bottom Paper Feeding
