Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper

Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper

큰 이미지 :  Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper

제품 상세 정보:
원래 장소: 안후이
브랜드 이름: Innovo Bochen
인증: CE
모델 번호: SFC-1500/1700/1900
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: 65000-85000USD
포장 세부 사항: 진공백
배달 시간: 45일
공급 능력: 한 달에 30 세트
접촉

Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper

설명
운전 유형: 전기 구동 다운 페이퍼 두께 두께: 400gsm-10mm 판지 및 플루트
라인 작업 속도 (m/min): 150-160 FOB 기간 가격: 70000-80000USD
최소 시트 사이즈: 1500 : 40*45cm 1700 : 45*45cm 라미네이션 유형: 골판지+골판지+골판지
최대 재료 크기: 1500*1500mm 및 1700*1700mm 접착제 롤러 크기: Anilox 롤러 ​​160mm 직경
조정: 하나의 키 조정

5ply Sheet To Sheet Laminating Machine for Corrugated Paper with Automatic Servo Control and Precision Servo Control
Performance Characteristics
  • Laminates combinations of two corrugated boards and any top sheet to produce 2-layer, 3ply, 4ply, 5ply, 7ply products
  • Handles various laminating types: corrugated + corrugated + cardboard, corrugated + cardboard, cardboard + gray board + cardboard, etc.
  • Automatic paper detection with servo correction technology for precise top-bottom paper alignment
  • Imported servo motor control system with Japan NITTA suction belt and lead edge feeding
  • Multifunctional rack accommodates curved corrugated materials
  • 160mm stainless steel glue roller with fine anilox grinding for even coating
  • Dual-use lifting platform with pre-stacker structure
  • Polyethylene-coated rollers for automatic glue release
  • Circulating glue system reduces waste and stabilizes adhesion
  • One-touch machine adjustment via paper size input
  • Integrated video monitoring system
Technical Specifications
Model SFC1500 SFC1700 SFC1900 SFC2200
Max size 1500×1500mm 1700×1700mm 1900×1900mm 2200×2100mm
Min size 360×380mm 380×400mm 450×450mm 500×500mm
Top Paper 120-800g
Bottom paper 400gsm-10mm Corrugated board and cardboard
Max speed 160m/min
Power 22kw 25kw 27KW 30KW
Stick accuracy ±1-2.5mm
Structural Features
  • Advanced transmission control system with automatic paper size adjustment
  • Computerized high-speed fitting (up to 12,000 pieces/hour)
  • Chuanliu-type air supply head with multiple nozzle sets
  • Feida Block system for low stack cardboard handling
  • Multiple electric eyes for precise paper alignment
  • Full-function electronic control with HMI and PLC monitoring
  • Automatic glue replenishment with recycling system
Key Components

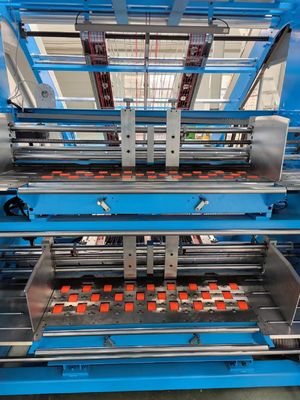

1. Bottom Paper Feeding
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 0

Double lead edge feeding system ensures smooth bottom paper feeding and accommodates cardboard feeding.

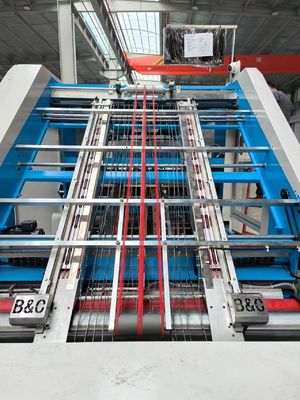

2. Top Sheet Feeding Mechanism
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 1 Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 2

Adjustable paper lifting and feeding nozzle system with Becker pump for smooth operation with various paper thicknesses.

3. Electrical System
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 3

CE-compliant design with HMI and PLC interface displaying operational data, warnings, and error detection.

4. Pre-Stack Part
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 4

Pre-pile system with touch screen configuration for efficient setup and orientation.

5. Transmission System
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 5 Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 6

Gates synchronous belt with SKF bearings for stable operation, featuring easy adjustment of pressure rollers and glue application.

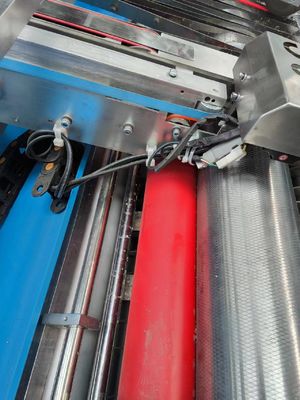

6. Positioning System & Glue Roller
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 7

Multiple photoelectric sensors control servo motors for accurate top-bottom paper alignment. Features stainless steel glue roller for even coating.

7. Touch Screen Operation
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 8

Centralized touch screen control with high-resolution interface for real-time monitoring and troubleshooting.

Optional Features
  • Leading Edge Feeding System (for large/thick sheets)
  • Shaftless Servo Feeder (for long top sheets)
  • Big Suction System (for multi-layer products)
  • Automatic Lubrication System (extends bearing life)
  • Video Monitoring System (remote operation monitoring)
Sheet To Sheet 5ply Laminating Machine with Automatic Servo Control System for Producing Multi Ply Laminated Corrugated Paper 9
