제품 상세 정보:
|
| 운전 유형: | 전기 구동 | 다운 페이퍼 두께 두께: | 400gsm-10mm 판지 및 플루트 |
|---|---|---|---|
| 라인 작업 속도 (m/min): | 150-160 | FOB 기간 가격: | 70000-80000USD |
| 최소 시트 사이즈: | 1500 : 40*45cm 1700 : 45*45cm | 라미네이션 유형: | 골판지+골판지+골판지 |
| 최대 재료 크기: | 1500*1500mm 및 1700*1700mm | 접착제 롤러 크기: | Anilox 롤러 160mm 직경 |
| 조정: | 하나의 키 조정 | ||
| 강조하다: | 5ply sheet laminating machine for corrugated paper,automatic servo control laminating machine,precision servo sheet to sheet laminator |
||
| Model | SFC1500 | SFC1700 | SFC1900 | SFC2200 |
|---|---|---|---|---|
| Max size | 1500×1500mm | 1700×1700mm | 1900×1900mm | 2200×2100mm |
| Min size | 360×380mm | 380×400mm | 450×450mm | 500×500mm |
| Top Paper | 120-800g | |||
| Bottom paper | 400gsm-10mm Corrugated board and cardboard | |||
| Max speed | 160m/min | |||
| Power | 22kw | 25kw | 27KW | 30KW |
| Stick accuracy | ±1-2.5mm | |||

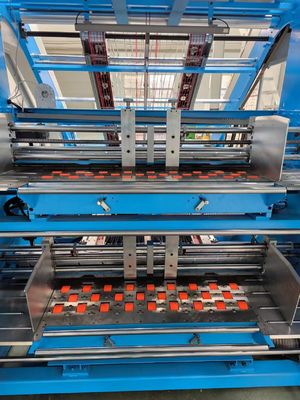

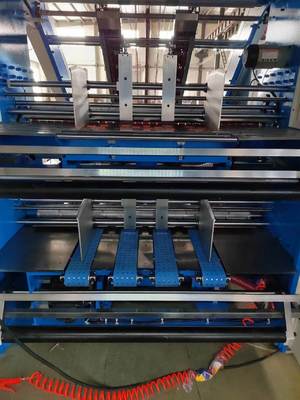

Double lead edge feeding system ensures smooth bottom paper feeding and accommodates cardboard feeding.
Adjustable paper lifting and feeding nozzle system with Becker pump for smooth operation with various paper thicknesses.
CE-compliant design with HMI and PLC interface displaying operational data, warnings, and error detection.
Pre-pile system with touch screen configuration for efficient setup and orientation.
Gates synchronous belt with SKF bearings for stable operation, featuring easy adjustment of pressure rollers and glue application.

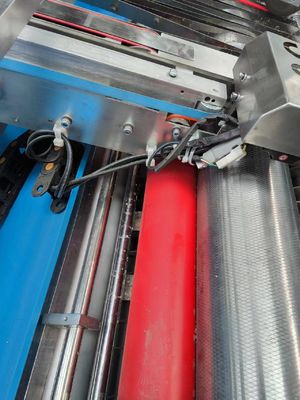

Multiple photoelectric sensors control servo motors for accurate top-bottom paper alignment. Features stainless steel glue roller for even coating.
Centralized touch screen control with high-resolution interface for real-time monitoring and troubleshooting.
