High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw)

High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw)
High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw)
High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw)

큰 이미지 :  High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw)

제품 상세 정보:
원래 장소: 중국
브랜드 이름: INNOVO
인증: CE
모델 번호: ZGFM-1500H/1700H
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: USD45000-65000
포장 세부 사항: 철재 파렛트와 필름 패키징
배달 시간: 20-30 일
지불 조건: l/c, t/t
공급 능력: 30 세트/월
접촉

High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw)

설명
맞춤형 공급: 고객에 따르면 준비 시간: 근무일 약 20-25 일
최대 작업 속도: 17000 시트/시간 또는 180m/분 최대 바닥 시트 공급 두께: 8-10mm 플루트
최소 보드 크기: 38*40cm 및 40*40cm 스틱 정확도: ± 1.0mm
최대 종이 크기: 170*170cm 힘: 22kw, 25kw, 27kw, 30kw
강조하다:

Precision Flute Laminator Machine

,

Large Paper Size Litho Laminator

,

Multiple Power Options Automatic Flute Laminator

Professional Automatic High Speed Flute Laminator Machine
High-Performance Corrugated Paperboard Lamination Solution
The Professional Automatic High Speed Flute Laminator Machine delivers superior performance for corrugated paperboard lamination. This industrial-grade solution handles a wide range of materials from 180-800g/m thin paper to 0.5-10mm paperboard, including single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, and styrofoam board.
Key Features
  • Maximum speed of 17,000 sheets per hour (180m/min)
  • Handles materials from 180-800g/m thin paper to 10mm flute board
  • Customizable configurations to meet specific production requirements
  • Touch screen automatic adjustment system
  • Maximum paper size: 170×170cm
  • Precision lamination with ±1.0mm stick accuracy
Technical Specifications
Parameter Specification
Max Bottom Sheet Feeding Thickness About 10mm Flute
Applicable Materials 180-800g/m thin paper, cardboard, 0.5-10mm paperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board
Stick Accuracy ±1.0mm
Min Board Size 36×38cm and 38×40cm
Adjust Type Automatic By Touch Screen
Laminating Type Corrugated+cardboard
Dimensions 16300×2400×2550mm
Max Speed 17000sheet/hour (180m/min)
Advanced Structural Features
This laminator incorporates world-class engineering including a leading transmission control system, computerized high-speed fitting, Chuanliu-type air supply head, Feida Block with low stack cardboard, multiple sets of electric eyes for paper alignment, full-function electronic control system, and automatic glue replenishment system.

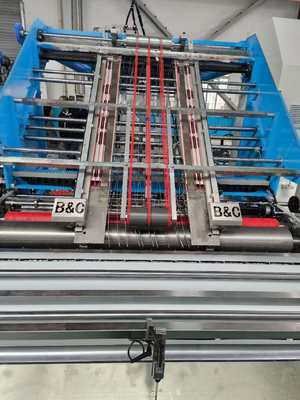

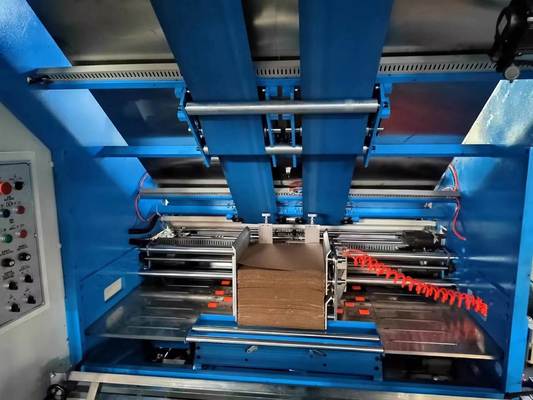

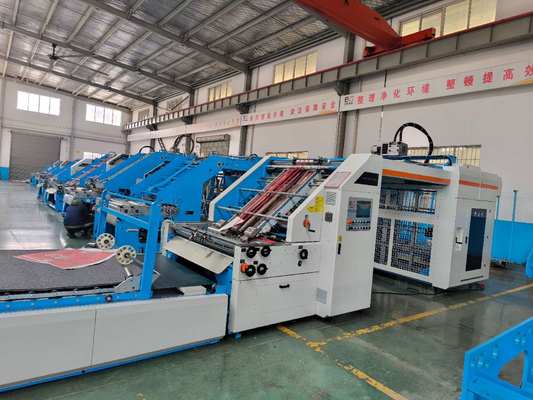

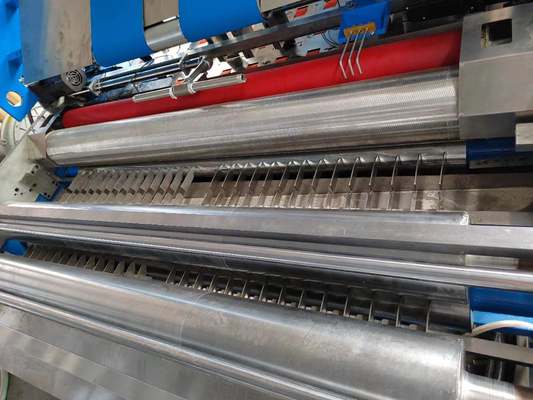

Product Images
High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) 0 High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) 1 High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) 2 High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) 3 High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) 4 High-Precision Automatic Flute Laminator Machine with Large Paper Size (170*170cm) and Multiple Power Options (22kw-30kw) 5
Support & Services
Our comprehensive support package includes installation assistance, operator training, troubleshooting, and maintenance services to ensure optimal machine performance throughout its lifecycle.
Packaging & Shipping
The machine is securely packaged with protective materials and shipped via reliable carriers. Standard packaging includes iron pallet and film wrapping to ensure safe transportation.
Frequently Asked Questions
What is the brand and model of this machine?
This is the INNOVO Automatic Flute Laminator Machine, model ZGFM1700 with CE certification.
Where is this machine manufactured?
The machine is manufactured in China to international quality standards.
What are the payment terms?
We accept L/C and T/T payment methods with a minimum order quantity of 1 set.
