High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination

Name: High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination
Brand: Anhui Innovo Bochen Machinery Manufacturing Co., Ltd.
SKU: GFS-1500/1700
Price: 69,000.00 USD
Availability: InStock

모든 제품

고속도 플루트 라미네이터 기계
(87)

자동 플루트 라미네이터 기계
(62)

리소 라미네이터
(47)

파일 터너 기계
(54)

플루트 라미네이션 기계
(28)

자동차 스택커 기계
(37)

판지로 만드는 적층기
(22)

종이 적층기
(16)

종이 장착기계
(12)

시트가 적층기를 시트로 덮습니다
(30)

물결모양 적층기
(23)

인증

제가 지금 온라인 채팅 해요

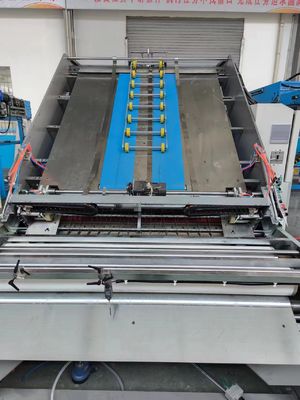

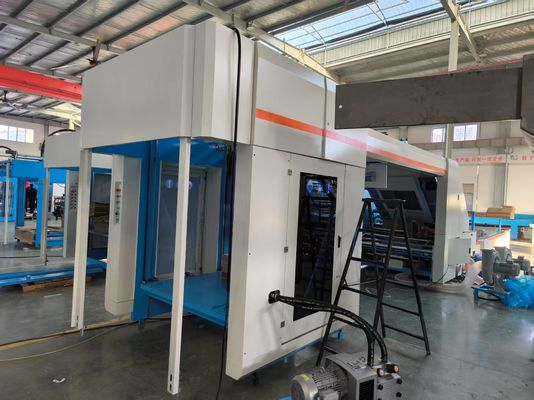

High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination

큰 이미지 : High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination

제품 상세 정보:

원래 장소:	안후이
브랜드 이름:	Innovo Bochen
인증:	CE
모델 번호:	GFS-1500/1700

결제 및 배송 조건:

최소 주문 수량:	1 세트
가격:	60000-78000USD
포장 세부 사항:	진공 백
배달 시간:	30-45 일
공급 능력:	한 달에 30 세트

접촉

High Speed Flute Laminator Machine with Max Line Speed 210m/min and Max Sheet Size 1500*1500mm for Cardboard Lamination

설명

결제 방법:	T/T 또는 L/C	기계의 정미중량:	9.5 톤
라미네이션 유형:	종이로 골판지 또는 골판지에서 골판지로	최대 라인 시속:	210m/분 또는 24000pcs/시간
보증 시간:	2년 또는 24개월	최대 시트 크기:	15001500mm 및 17001700mm
전원 공급 장치:	380V/50Hz 3 상	표면 페이퍼 두께:	100-800GSM 인쇄 용지 또는 판지
마에케팅은 타이핑합니다:	완전히 지적입니다	힘:	30kW
애플리케이션:	골판지와 판지를 라미네이트합니다
강조하다:	Max Line Speed 210m/min Flute Laminator Machine , Max Sheet Size 1500*1500mm Cardboard Laminating Machine , Power 30KW Corrugated Laminating Machine

Circulating Glue System High Speed Flute Laminator Machine GFS1500

Reduced Glue Consumption in Corrugated Lamination

Performance Characteristics

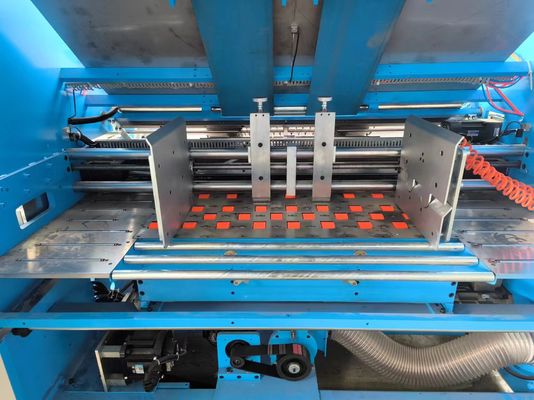

Lead edge feeding system: No feeding pressure structure, prevents damage to corrugated material while enhancing pressure resistance.

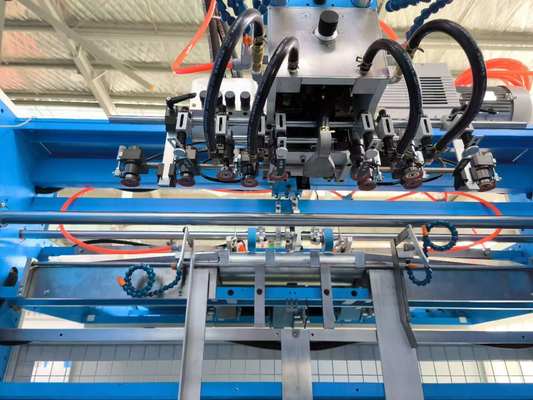

Top sheet aligner system: Ensures high accuracy with optional overlap or separation sheet feeding modes.
Digital glue volume control: Automatic adjustment of glue volume and gluing roller gap based on bottom sheet thickness.
Large stainless steel anilox roller (160mm diameter): Provides stable, high-efficiency operation with even coating and glue savings.
Automatic paper detection: Servo correction technology ensures top paper accurately tracks bottom paper.
Dual-use lifting platform: Accommodates both pre-stacker paper feeding and direct stack feeding.
Multifunctional rack: Designed for curved corrugated materials.
Circulating glue system: Reduces glue loss and maintains stable adhesion.
One-click adjustment: Whole machine setup with simple paper size input.
Order memory function: Quick recall of previous settings for efficient operation.
Video monitoring: Optional system for operational oversight.

Technical Specifications

Model	GFS1500	GFS-1700	GFS-1900	GFS-2200
Max size	1500×15000mm	1700×1700mm	1900×1900mm	2200×2100mm
Min size	360×380mm	380×400mm	450×450mm	500×500mm
Top Paper	120-800g	120-800g	120-800g	120-800g
Bottom paper	300gsm-10mm Corrugated board and cardboard
Max speed	180m/min	180m/min	180m/min	180m/min
Power	22kw	25kw	27KW	30KW
Stick accuracy	±1.0mm	±1.0mm	±1.0mm	±1.0mm

Structural Features

Advanced transmission control system with automatic paper size adjustment
Computerized high-speed fitting capability (up to 18,000 pieces/hour)
Chuanliu-type air supply head with multiple nozzle configurations
Feida Block system for efficient cardboard handling with optional track-assisted pre-stacker
Multiple electric eye sensors for precise paper alignment
Full-function electronic control system with human-machine interface and PLC monitoring
Automatic glue replenishment system with recycling capability

System Components

Bottom Paper Feeding
